1973 interstate reawakening
- Thread starter EliTR6
- Start date
EliTR6
MEMBER
- Joined
- May 2021
- Messages
- 30
Finally some real progress!
The rotor key was a bugger to pull out.
I forgot to undo the two head bolts underneath towards the front but other than that it went smoothly. The centre nut between the inlets was already off, guess the PO had decided life was too short to put it back.

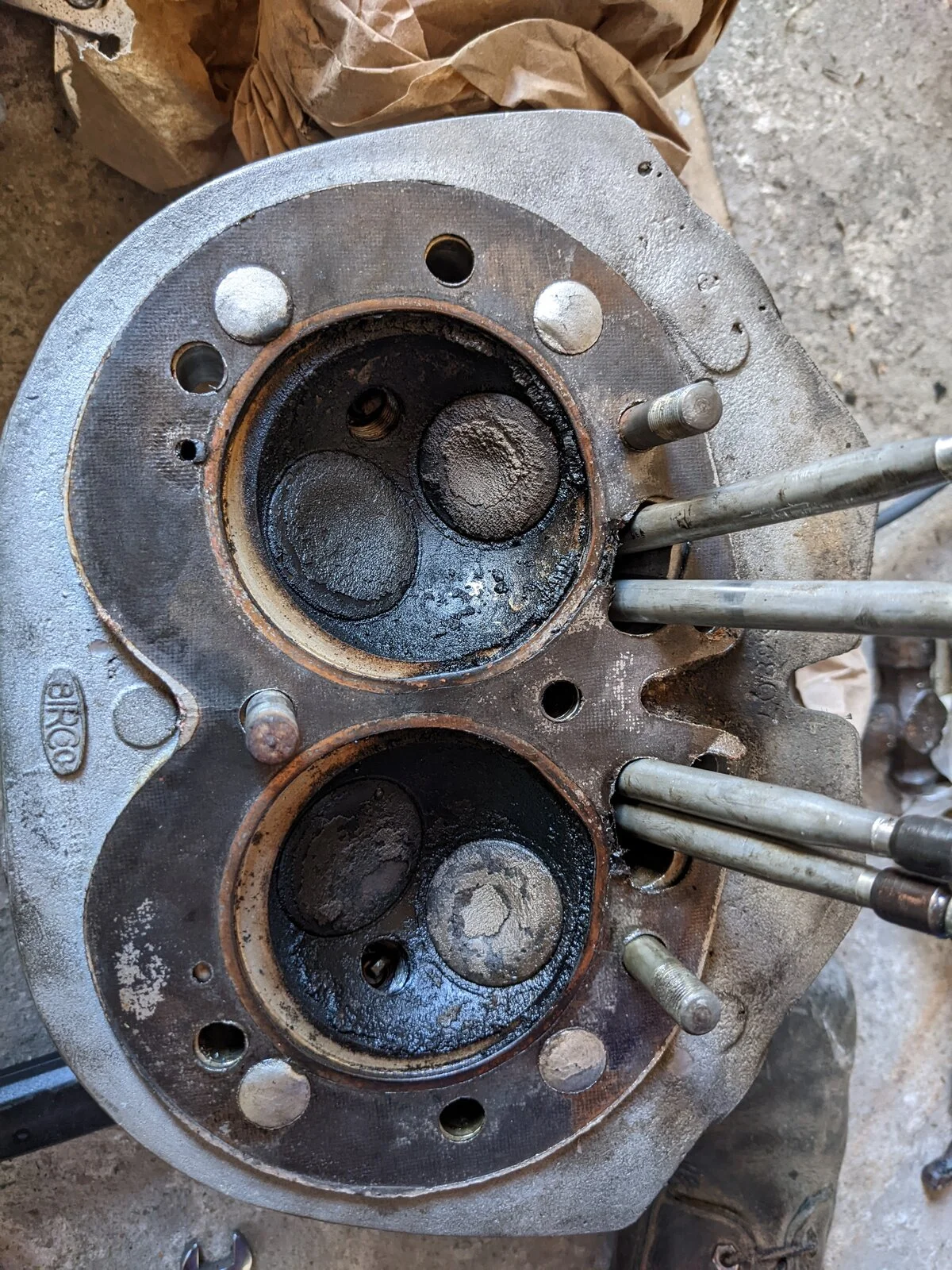

Is this a blown head gasket I'm looking at?
The rotor key was a bugger to pull out.
I forgot to undo the two head bolts underneath towards the front but other than that it went smoothly. The centre nut between the inlets was already off, guess the PO had decided life was too short to put it back.
Is this a blown head gasket I'm looking at?
Attachments
gortnipper
MEMBER
- Joined
- Nov 2013
- Messages
- 5,452
I had a bugger of a time removing the rotor key when I stripped down my bike. Of course, I forgot about that until I tried to get the new one in.
It would only go in half way, and bound up in the same spot even if I flipped the key.
So I looked closer and coud see why. Look at the dent in the bottom right of the shaft key hole.
I spent a good while with my grandpa's old toolmaker's files to get the hump out so I could get the key in finally.
It would only go in half way, and bound up in the same spot even if I flipped the key.
So I looked closer and coud see why. Look at the dent in the bottom right of the shaft key hole.
I spent a good while with my grandpa's old toolmaker's files to get the hump out so I could get the key in finally.
gortnipper
MEMBER
- Joined
- Nov 2013
- Messages
- 5,452

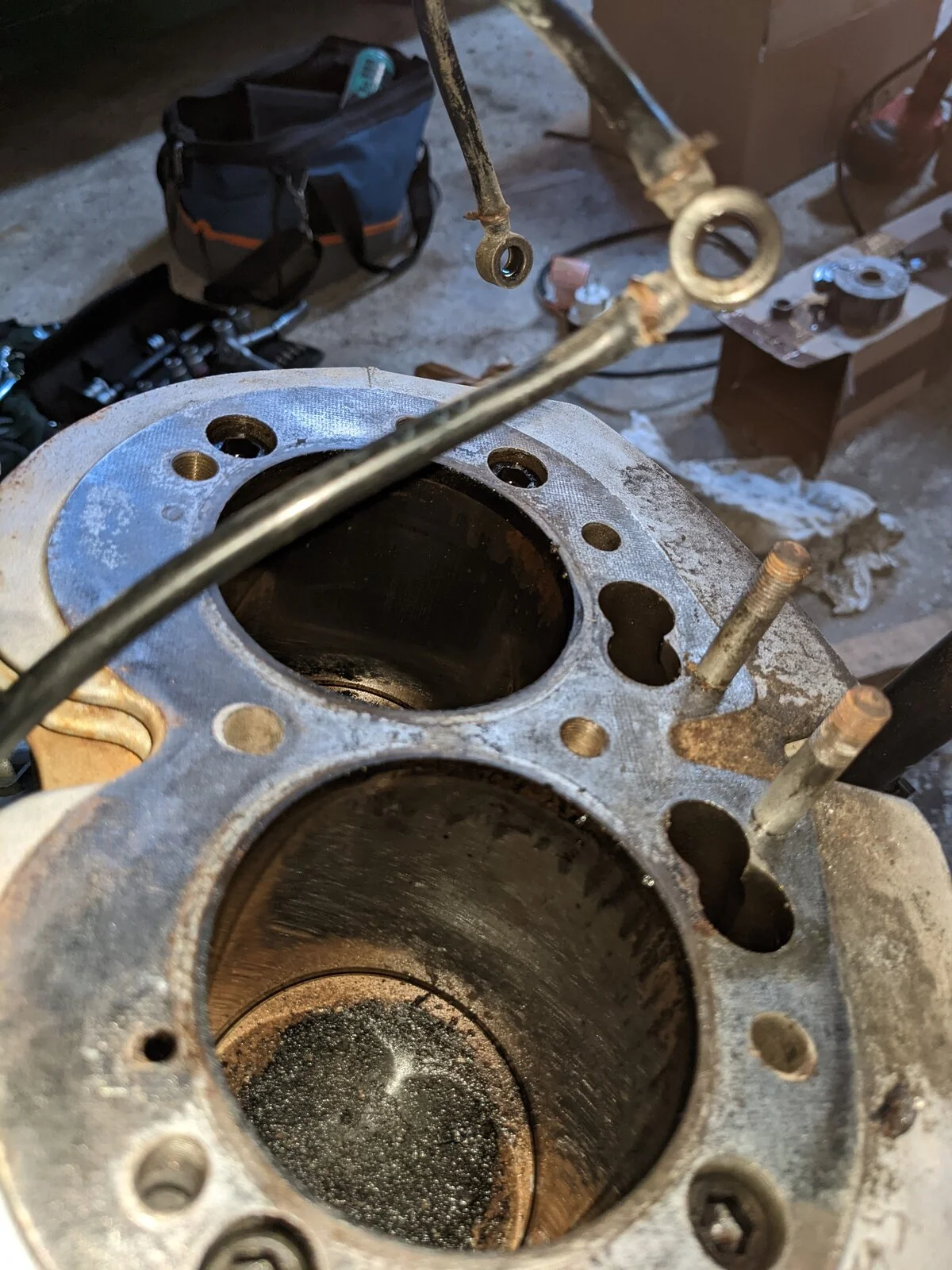

That gasket doesn't look good at the push rod tunnels. Look at the carbon build up on the L piston there.
- Joined
- Nov 2004
- Messages
- 21,419
https://andover-norton.co.uk/en/shop-drawing/147/exhausts-mufflers-passenger-footpegs
That's the Mk3 (and later Mk2A?) type flared exhaust pipe so there should have been collet 06.5260 (or broken into two parts?) between the exhaust lockring and the pipe flare?
Motorcycle parts and spares for Norton motorbikes - Andover Norton Spare Parts - Andover Norton Motorcycles Parts - Original Andover Norton Parts
Motorcycle parts and spares for Andover Norton motorbikes: Andover Norton manufactures and supplies all Factory Spare Parts for Norton motorcycles built before 2002.
andover-norton.co.uk
And, I think I see an incorrect (06.3995) sealing washer...
...behind what looks to be the correct (06.5259) spherical seating...,
Motorcycle parts and spares for Norton motorbikes - Andover Norton Spare Parts - Andover Norton Motorcycles Parts - Original Andover Norton Parts
Motorcycle parts and spares for Andover Norton motorbikes: Andover Norton manufactures and supplies all Factory Spare Parts for Norton motorcycles built before 2002.
andover-norton.co.uk
...as 06.3995 washers wouldn't normally be fitted with that type of flared exhaust, only collets and spherical seatings.
Also, the long reverse cone Interstate silencers you have shouldn't fit that type of flared exhaust pipe system!
Last edited:
EliTR6
MEMBER
- Joined
- May 2021
- Messages
- 30
Thanks, yes there was a collet split in two on both sideshttps://andover-norton.co.uk/en/shop-drawing/147/exhausts-mufflers-passenger-footpegs
That's the Mk3 (and later Mk2A?) type flared exhaust pipe so there should have been collet 06.5260 (or broken into two parts?) between the exhaust lockring and the pipe flare?
Motorcycle parts and spares for Norton motorbikes - Andover Norton Spare Parts - Andover Norton Motorcycles Parts - Original Andover Norton Parts
Motorcycle parts and spares for Andover Norton motorbikes: Andover Norton manufactures and supplies all Factory Spare Parts for Norton motorcycles built before 2002.
And, I think I see an incorrect (06.3995) sealing washer...
...behind what looks to be the correct (06.5259) spherical seating...,
Motorcycle parts and spares for Norton motorbikes - Andover Norton Spare Parts - Andover Norton Motorcycles Parts - Original Andover Norton Parts
Motorcycle parts and spares for Andover Norton motorbikes: Andover Norton manufactures and supplies all Factory Spare Parts for Norton motorcycles built before 2002.
...as 06.3995 washers wouldn't normally be fitted with that type of flared exhaust, only collets and spherical seatings.
Also, the long reverse cone Interstate silencers you have shouldn't fit that type of flared exhaust pipe system!

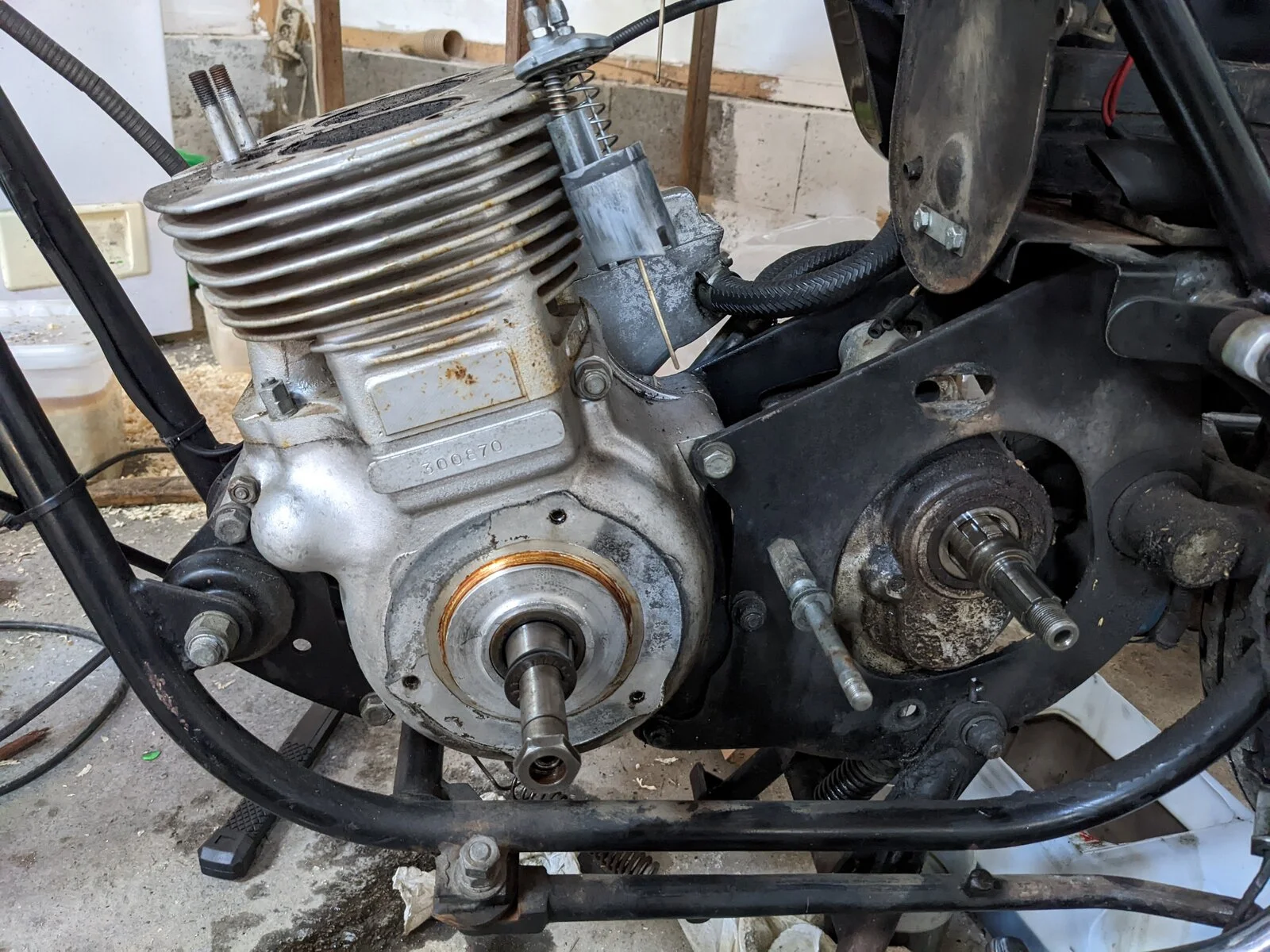

I've pulled the ignition cam out but the timing cover is firmly stuck on. I was about to get stuck in with a sharp thin knife but had a surprise visitor to take care of. He loves all things mechanical!
- Joined
- Nov 2004
- Messages
- 21,419

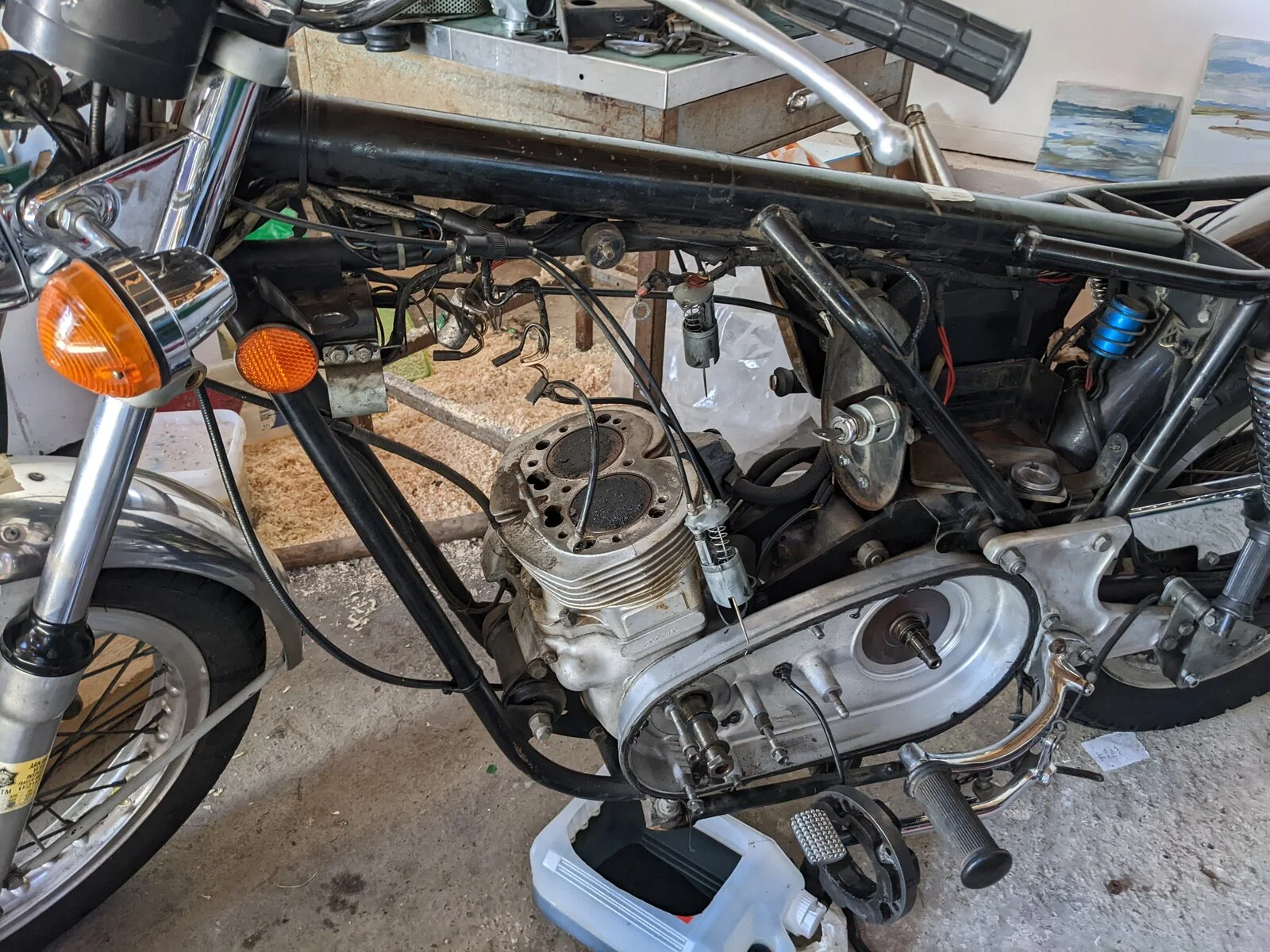

Yes, you need to support the frame somehow or the whole thing is likely to collapse or at least become unstable when the engine is unbolted from the cradle.
SteveBorland
FULL MEMBER
- Joined
- Nov 2010
- Messages
- 1,051
Regarding your new used tank, I would be inclined to remove the rust (electrolysis works very well) but to leave the small dent alone. The pinstriping looks good, is bloody difficult / expensive to get redone and is rather important for the looks of the finished tank. Interstate tanks are rather bulky, and without the pinstriping, I always feel they resemble a pregnant walus - large, shapeless and sort of flowing out everywhere.
My Commando came with an Interstate tank, no rust but a couple of small dents and scrapes, otherwise in really good shape. I tried to "improve" the dents, but was not happy with the result & ended up swapping it for a Roadster tank.
My Commando came with an Interstate tank, no rust but a couple of small dents and scrapes, otherwise in really good shape. I tried to "improve" the dents, but was not happy with the result & ended up swapping it for a Roadster tank.
gortnipper
MEMBER
- Joined
- Nov 2013
- Messages
- 5,452
A couple pieces of wood under the frame allows you to pull out the engine, cradle and swingarm as a unit, and remove the forks/triples.
EliTR6
MEMBER
- Joined
- May 2021
- Messages
- 30
Thanks. I want to preserve as much patina as possible and this tank certainly looks the part. I'm not too hot on the red pin stripe but I can learn to live with it.
EliTR6
MEMBER
- Joined
- May 2021
- Messages
- 30
Thanks, that's exactly what I needed to know!A couple pieces of wood under the frame allows you to pull out the engine, cradle and swingarm as a unit, and remove the forks/triples.
